KYLC8/8CY
KC Machinery
KYLC8/8CY
| Availability: | |
|---|---|
| Quantity: | |
Product Description:

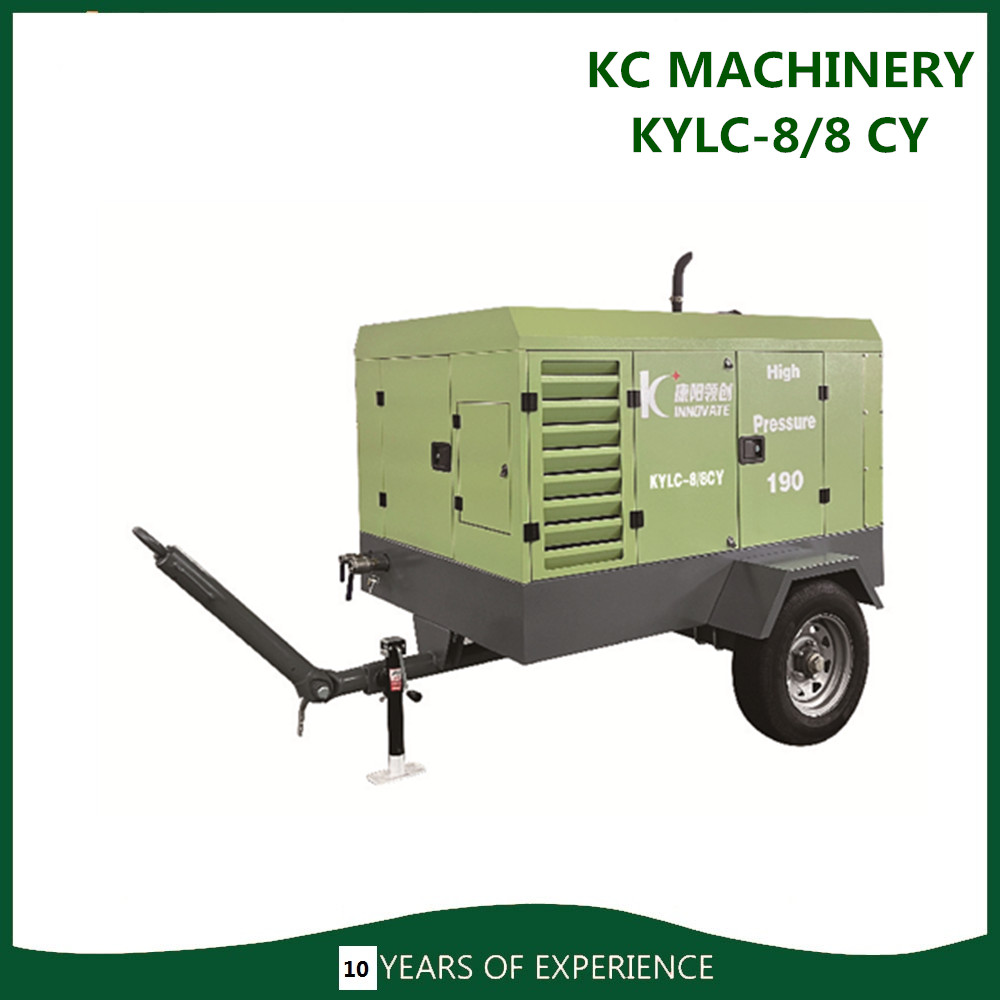

KYLC 8/8CY Diesel Driven Single Stage of Screw Air Compressor
Features:
1: Cummins or Yuchai high-quality brands diesel engine supporting:
2:Heavy-load engine head design, excellent performance, energy efficiency upgrade;
3: Integrated two-in-one function to solve the low temperature starting difficulty of conventional inlet valve and the failure of piston seal;
4: With the Fleetguard air filtration system, the double filter element ensures that the compressor takes in cleaner air
5: High temperature resistant design, suitable for severe high temperature weather;
6:Automatic control and protection system.
Techinical Specification
| Models | KYLC-8/8CY |
| F.A.D M³/Min | 8 |
| Discharge Pressure Mpa | 0.8(equal to 8Bars) |
| Diesel Engine/Motor | Cummins Or Yuchai Brand |
| Power KW | 59KW |
| Standard Condition | Single -Stage |
| Max.Working Speed Rpm | 1800 |
| Idle Speed Rpm | 1350 |
| Fuel Tank Capacity L | 90 |
| Exhaut Ball Valve | G1"/G1 1/2" |
| Tyre Size | Two Wheels |
| Outer Dimensions mm | 2441x1806x1900 |
| Weight KGS | 1650 |
| Noise | 75 |
| Applicable Temp.℃ | -10-50 |
| Altitude.M | 3000 |
