KYLC-12/10CY
KC Machinery
KYLC-12/10CY
| Availability: | |
|---|---|
| Quantity: | |
Product Description:

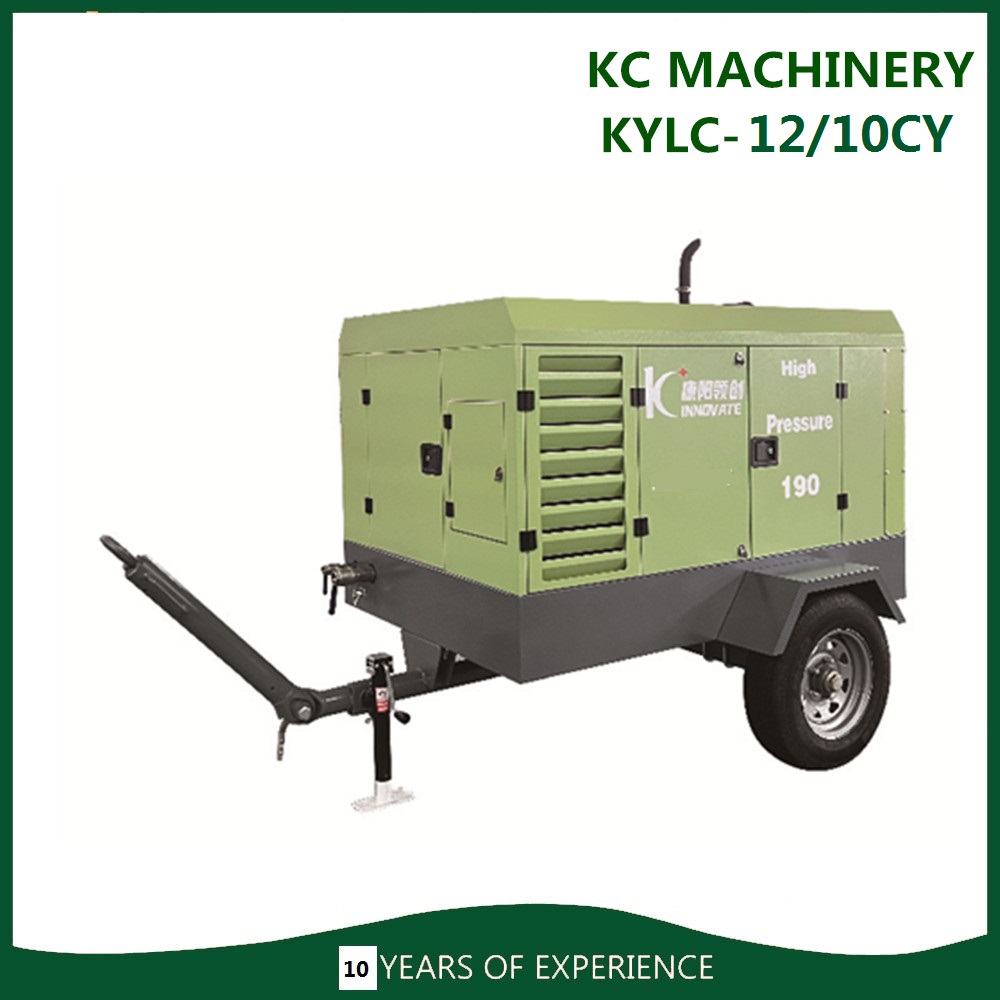

KYLC-12/10CY Diesel Driven Screw air compressor
1: Full series of secondary energy efficiency four-wheel mobile small volume shape design;
2: PLC programmable fully automatic protection device system;
3: Integrated constant opening and closing two--function to solve the problem of low-temperature starting of conventional inlet valve, and the failure of piston seal,
4:With the Fleetguard air filtration system, the double filter element ensures the compressor takes in cleaner air.
Technical specifications
| Models | KYLC-12/10CY |
| F.A.D.M³/Min | 12 |
| Discharge Pressure Mpa | 1.0(10 bars) |
| Diesel Engine/Motor | Yuchai Brand. |
| Power KW | 88 |
| Standard Condition | / |
| Max Working Speed Rpm | 1950 |
| Idle Speed Rpm | 1420 |
| Fuel Tank Capacity L | 120 |
| Exhaust Ball Valve | G1"/ 1/2" |
| Tyre Size | Two Wheels |
| Outer Demension mm | 2441x1806x2059MM |
| Weight KG | 1800 |
| Noise | 75 |
| Applicable TEMP. ℃ | -10-50 |
| Altitude M | 3000 |
