Product Description:

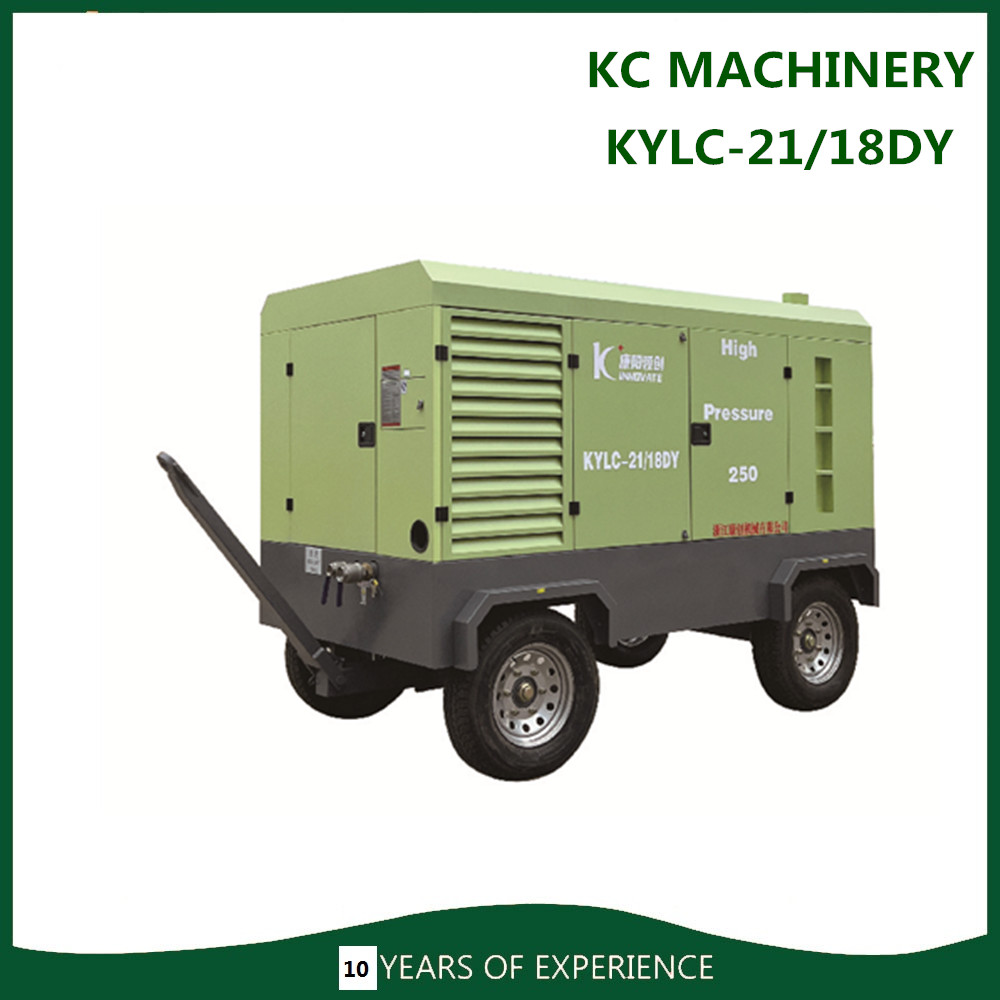

KYLC-21/18DY Electic Driven Screw air compressor
Features:
1: Full series of secondary energy efficiency four-wheel mobile small volume shape design;
2: PLC programmable fully automatic protection device system;
3: Integrated constant opening and closing two--function to solve the problem of low-temperature starting of conventional inlet valve, and the failure of piston seal,
4:With the Fleetguard air filtration system, the double filter element ensures the compressor takes in cleaner air.
Technical specifications
| Models | KYLC-21/18DY |
| F.A.D.M³/Min | 21 |
| Discharge Pressure Mpa | 1.8(18 bars) |
| Diesel Engine/Motor | HanSheng/GeShi |
| Power KW | 132 |
| Max. Working Speed Rpm | 2970 |
| Exhaust Ball Valve | G2"/G11/2" |
| Tyre Size | Four Wheels |
| Outer Demension mm | 3370X1824X2350MM |
| Weight KG | 3500 |
| Noise | 90 |
| Applicable TEMP. ℃ | -10-50 |
| Altitude M | 3000 |
