KYLC 720M Separated Hydraulic crawler Down-The- Hole Drilling rig

KYLC720M Drilling rig is the highest Leval Multifuncational Rig in the Separted drill rig Machines .

Model:
KYLC720M
Brand:
KC Machinery
Code:
KYLC720M

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description:

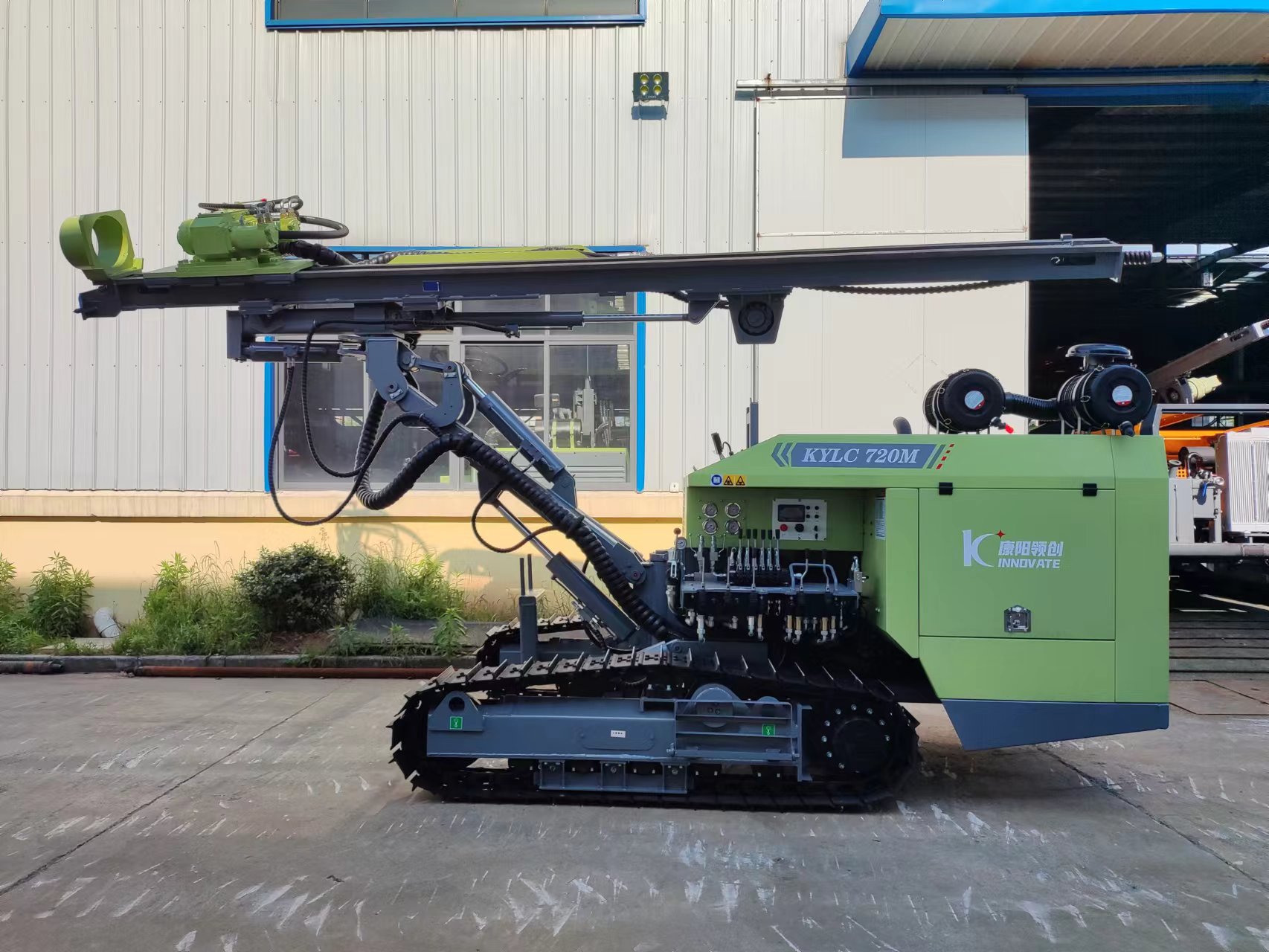

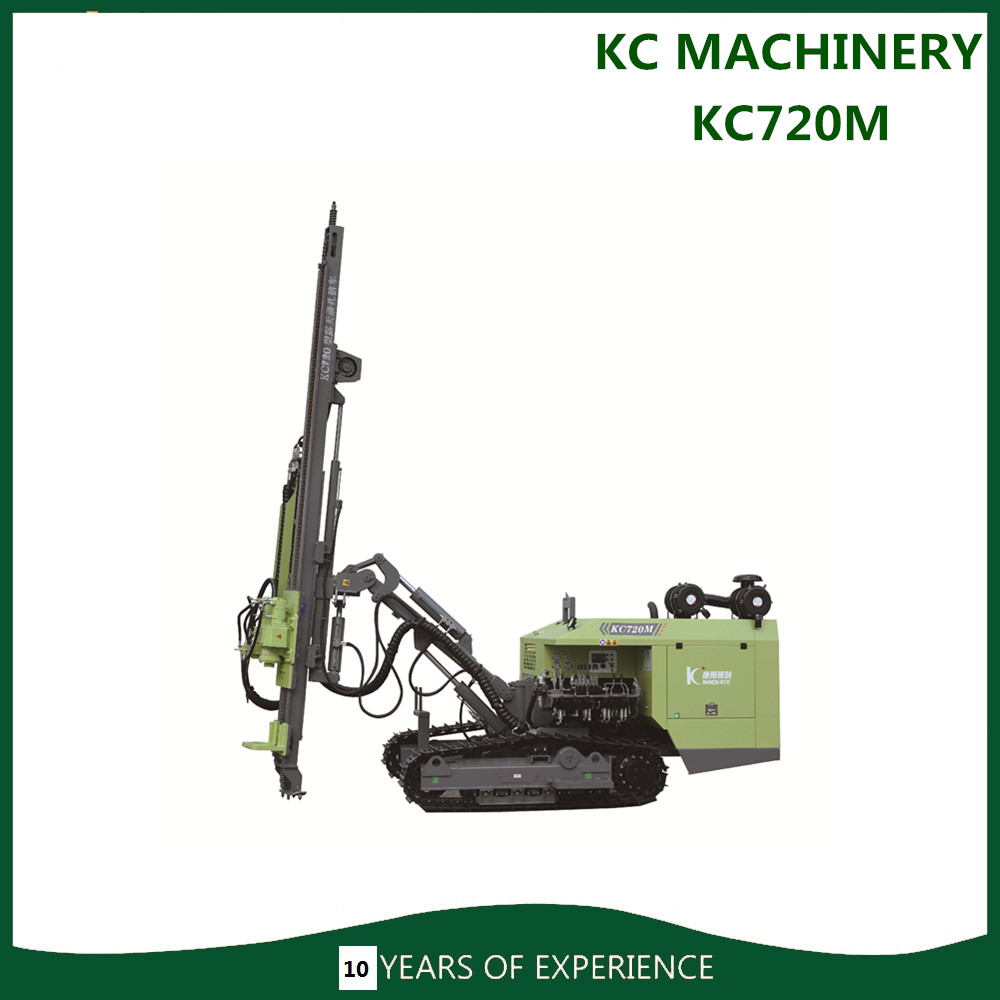

KYLC-720M Surface Down-The-Hole Drill rig

KYLC720M Down-The-Hole Drill Rig is the Plus version of KYLC712. Upgrade the hydraulic system, increase the system flow, and increase the rotation speed. Increase the pitch and lifting arm cylinder to meet its limited position using requirements. The high strength propulsion beam and high torque rotary motor enable the rig to use freely in various rock conditions

Technical Speficiation


Supporting Power	Yuchai 73.5KW Four-Cylinder
Rated Power	73.5KW
Drilling Diameter	160-260MM
Depth of Econnomical Drilling	30M
Drill Rod	6+1 φ76mmx3000mm/φ76mmx2000mm
Inches/DTH Hammer	4"/5"/6"
Working Pressure	1-2.4Mpa
Air Consumpation	14-50M³/Min
Rotary Torque(Max.)	8000N.m
Rotary Speed	0-80r/min
Method of Feed	Motor+Chain
Travelling Speed	0-3KM/h
Climbling Capacity	30°
Ground Clearance	430mm
Weight of Complete Machine	6190KGS
(LxWxH)/Outer Dimensions	6000X2270X3000
Drilling Hardness	F=6~20
Volume of Diesel Oil Tank	100L
Method of Dust Collecting	/
