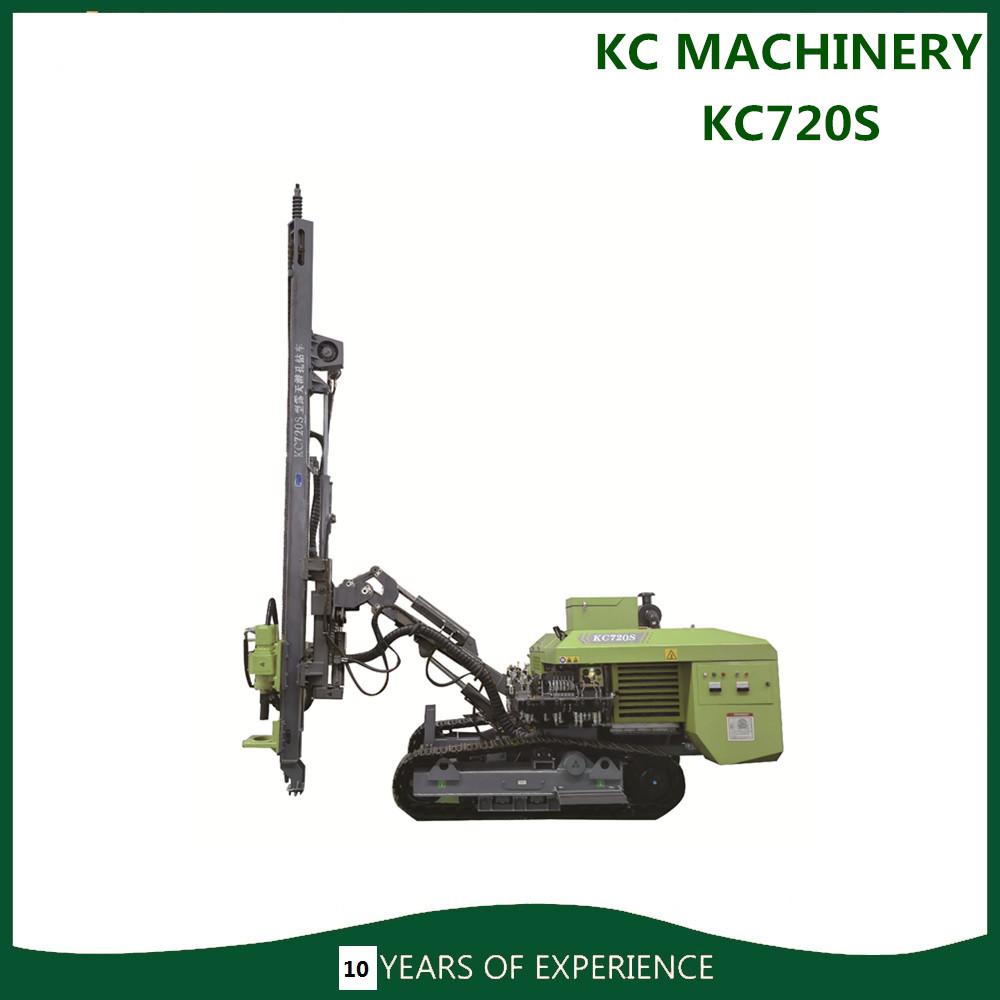

KYLC 720S Separated Hydraulic crawler Down-The- Hole Drilling rig

KYLC720S Drilling rig is the highest Leval Multifuncational Rig in the Separted drill rig Machines .

Model:
KYLC720S
Brand:
KC Machinery
Code:
KYLC720S

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description:

KYLC-720S Surface Down-The-Hole Drill rig

KYLC720S Down-The-Hole Drill Rig is the Plus version of KYLC712.Upgrade the hydraulic system, increase the system flow, and increase the rotation speed. Increase the pitch and lifting arm cylinder to meet its limited position using

requirements. The high strength propulsion beam and high torque rotary motor enable the rig to use freely in various rock conditions

Technical Speficiation


Supporting Power	Yuchai 73.5KW Four-Cylinder+55kW Electric Motor
Rated Power	73.5KW/55kw
Drilling Diameter	160-260MM
Depth of Econnomical Drilling	50M
Drill Rod	6+1 φ76mmx3000mm/φ76mmx2000mm
Inches/DTH Hammer	4"/5"/6"
Working Pressure	1-2.4Mpa
Air Consumpation	14-50M³/Min
Rotary Torque(Max.)	7000N.m
Rotary Speed	0-80r/min
Method of Feed	Motor+Chain
Travelling Speed	0-2.5KM/h
Climbling Capacity	25°
Ground Clearance	400mm
Weight of Complete Machine	6500KGS
(LxWxH)/Outer Dimensions	6050X2200X2600 mm
Drilling Hardness	F=6~20
Volume of Diesel Oil Tank	70L
Method of Dust Collecting	/
