KH843Best Selling Integrated Down-The -Hole Drilling rig

KH 843Model Integarated DTH drill rig is the advancest DTH drill Rig designed by KC Machinery.

Model:
KH843
Brand:
KC Machinery
Code:
KH843

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description:

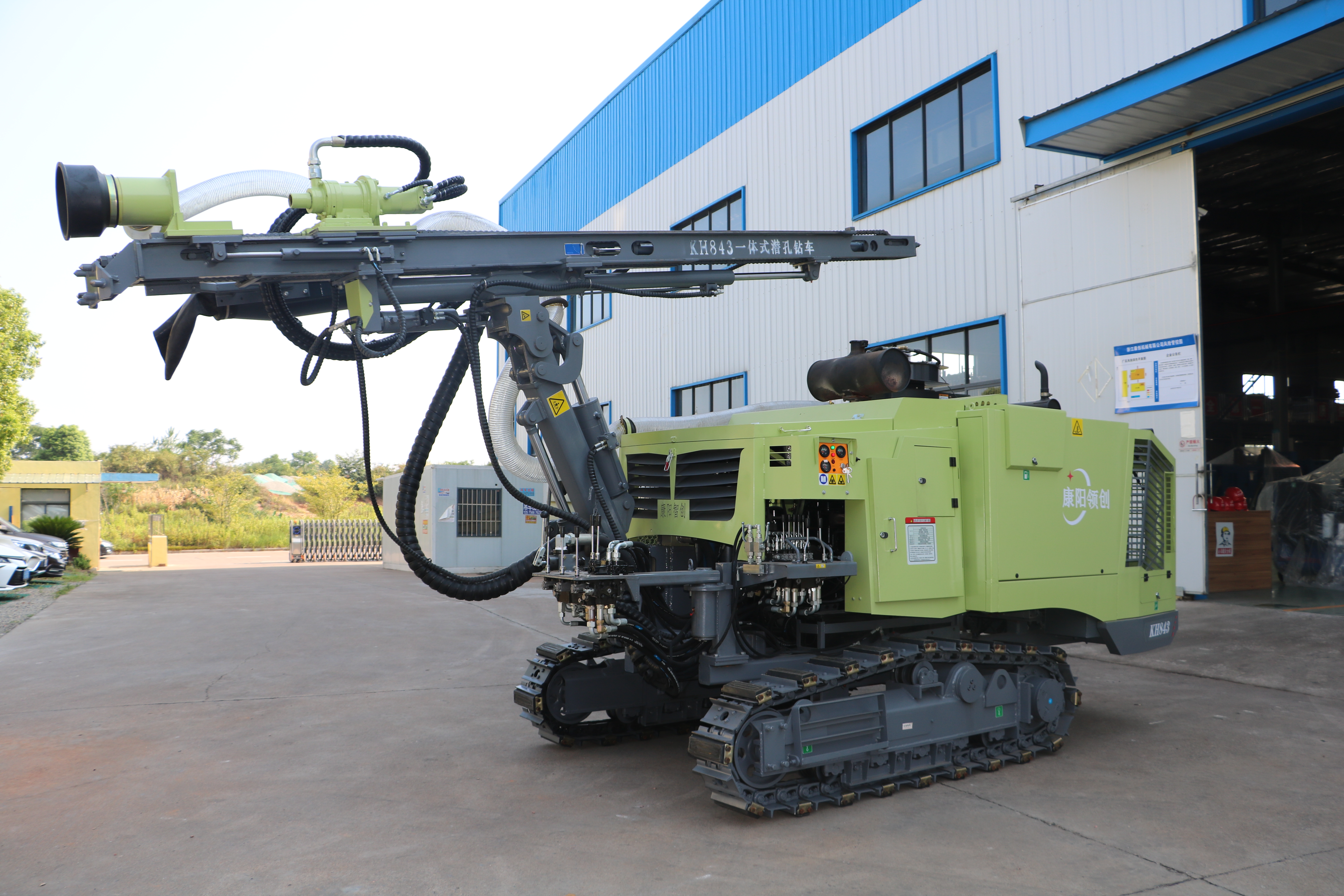

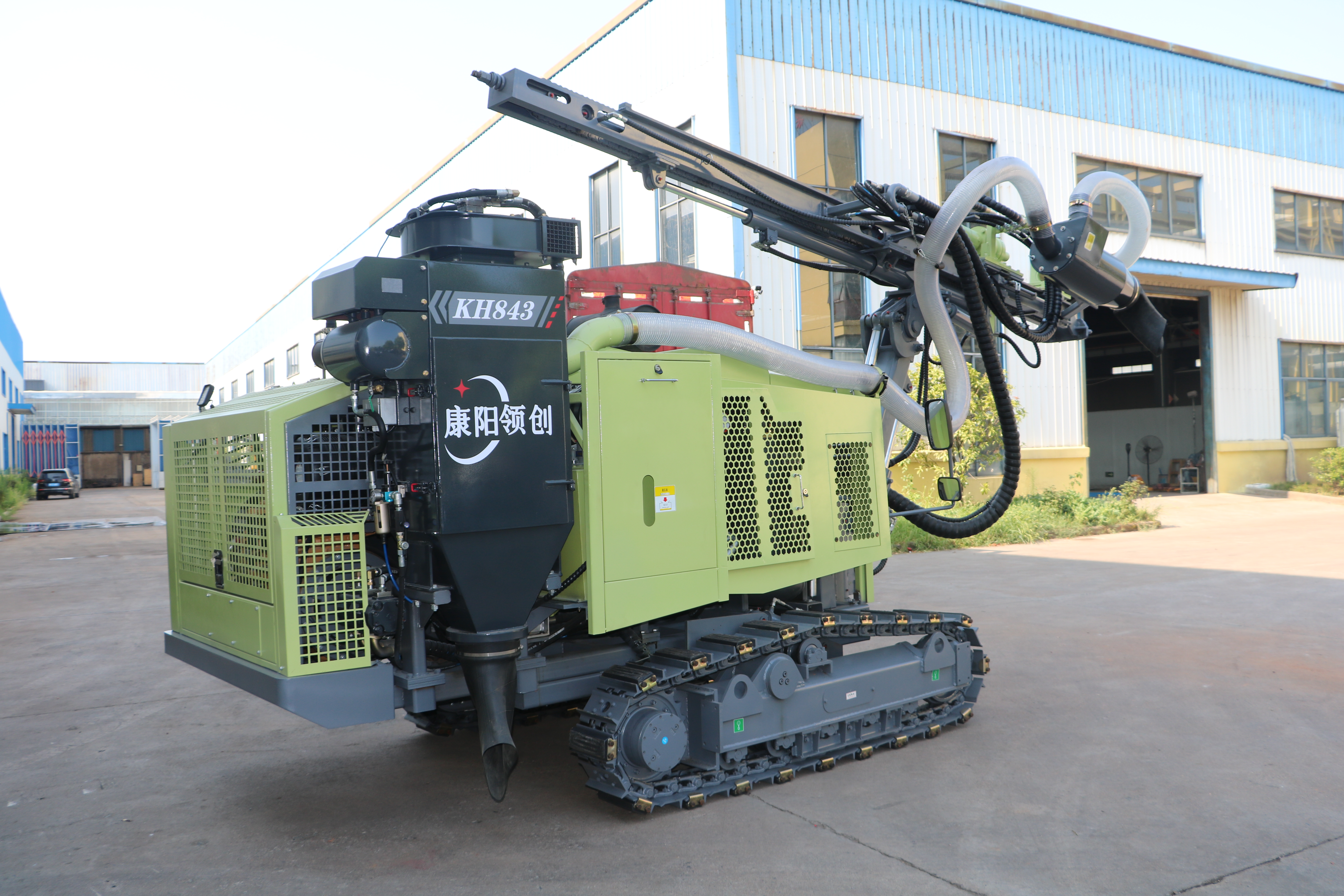

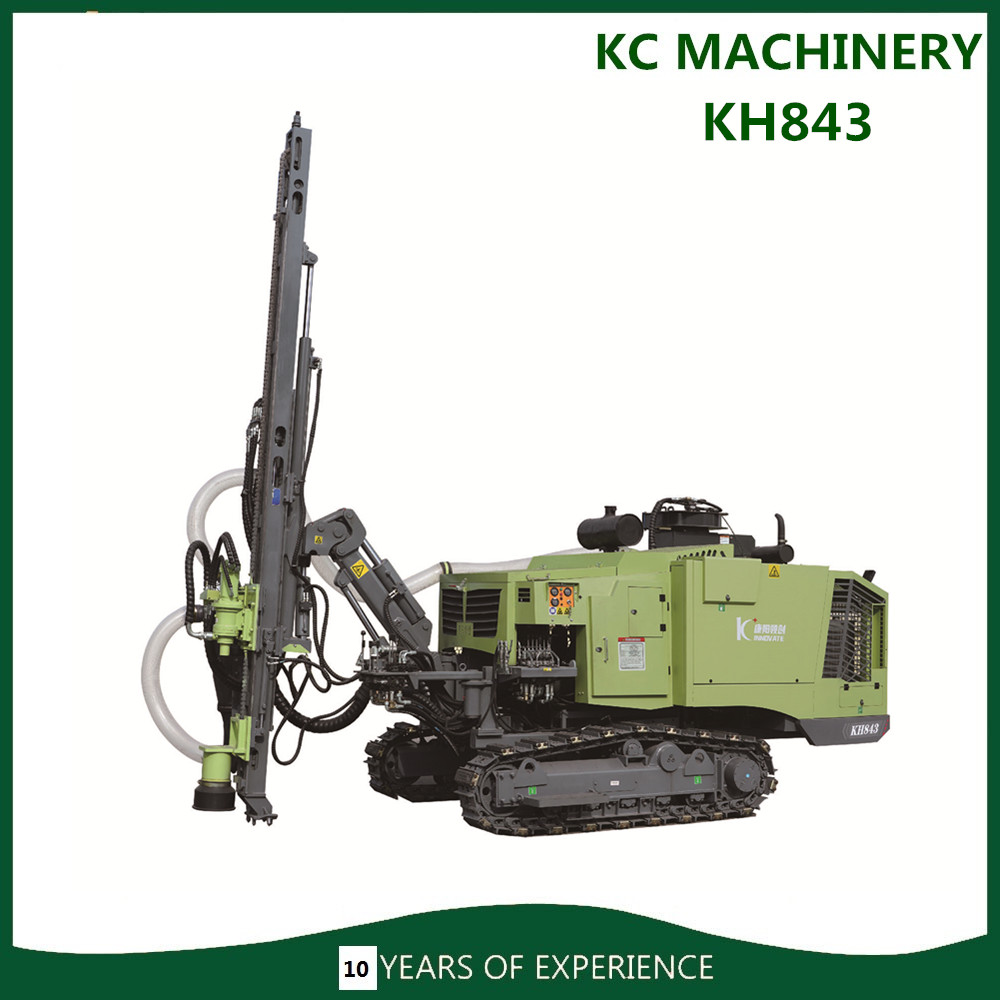

KH843 Integreted Blasting Hole Down-The-Hole Drill Rig

Feautures:

KYLC843 The integrated open-air Down- The- Hole drill rig is combined the Down -The- Hole drilling system and the screw air compression system. Can drill for vertical,inclined and horizontal holes. It is used for drilling blasting holes and Pre-crack holes in open mines and rock excavation engineering.Equipped with an efficient dust collection system

Techincal Spefications

Hole Diameter	90-120mm
Drilling Depth	30M
Rotate Torque	1650N.m
Engine	Yuchai 6 Cyliner 110KW or 4Cylinder78KW
Compressor	Single-Stage Compressor (13M³/Min,16Bar)
Weight	6880KGS
Drill Magazine	3M φ64Drill Rods 6pcs+.2Mφ64Drill Rods 1pcs+45A DTH Hammer+1 Drill Bits
Guide	Aluminum Alloy
Valve	Qiantian /QT Hydraulic Valve
Rotate Speed	0-150 r/Min
Feed Form	Aluminum Alloy Beam+Oil Cylinder Propulsion
Rotation Motor	Eaton 6K Series
Dust	Xuanhua 14 Core(14^2)
Tramming Speed	Fast 3km/h, Slow 1.5kw/h
Electric System	Imported electrical parts,Ip56 Leval waterproof.
