KYLC580/17CY
KC Machinery
KYLC580/17CY
| Availability: | |
|---|---|
| Quantity: | |
Product Description:

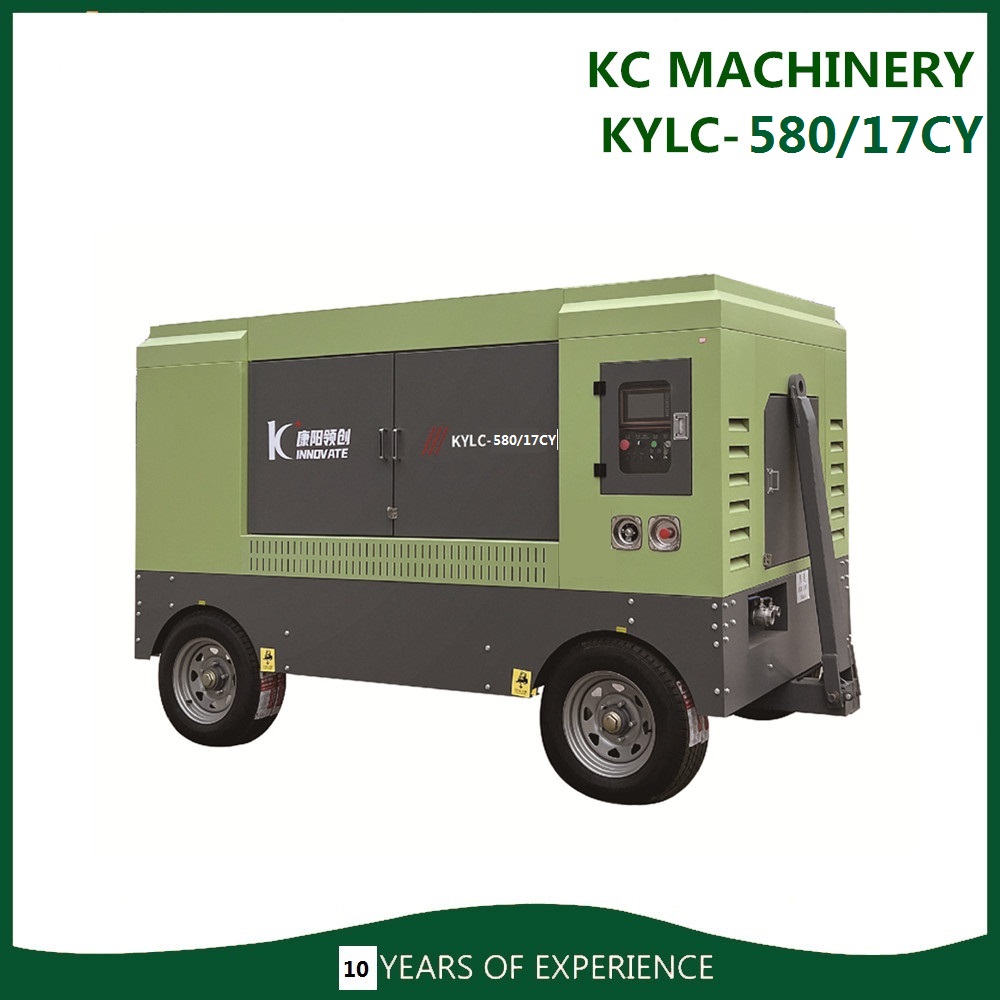

KYLC 580/17CY Diesel Driven Single Stage of Screw Air Compressor
Features:
1: Cummins or Yuchai high-quality brands diesel engine supporting:
2:Heavy-load engine head design, excellent performance, energy efficiency upgrade;
3: Integrated two-in-one function to solve the low temperature starting difficulty of conventional inlet valve and the failure of piston seal;
4: With the Fleetguard air filtration system, the double filter element ensures that the compressor takes in cleaner air
5: High temperature resistant design, suitable for severe high temperature weather;
6:Automatic control and protection system.
Techinical Specification
| Models | KYLC-580/17CY |
| F.A.D M³/Min | 18 |
| Discharge Pressure Mpa | 1.7(equal to 17Bars) |
| Diesel Engine/Motor | Cummins Or Yuchai Brand |
| Power KW | 194 |
| Standard Condition | Single -Stage |
| Max.Working Speed Rpm | 2000 |
| Idle Speed Rpm | 1420 |
| Fuel Tank Capacity L | 185 |
| Exhaut Ball Valve | G1 1/2"/G" |
| Tyre Size | Four Wheels |
| Outer Dimensions mm | 3200x1820x2460 |
| Weight KGS | 3500 |
| Noise | 85 |
| Applicable Temp.℃ | -10-50 |
| Altitude.M | 3000 |
